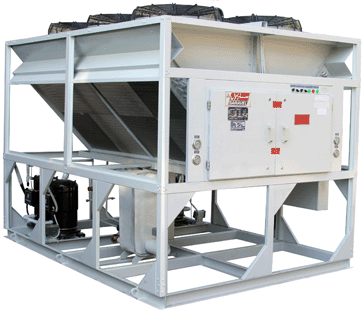

AIR COOLED PACKAGED
LIQUID CHILLER
SARAVEL Air cooled packaged liquid chillers are completely self-contained and designed for outdoor (roof or ground level) installations in new or existing stores, restaurants, offices, schools, computer rooms, and industrial plants. The low profile and ease of installation associated with these units makes it possible that the only alteration in existing buildings is the chilled water supply and return piping to central station air handling or terminal units.
-
Available in 16 different models with cooling capacities ranging from 10 to 320 tons
-
Heavy gage, galvanized steel structure
-
Rigid structural steel base frame
-
Copper fin plate for corrosive environments
-
Condenser fan and compressor sequencing via multistage thermostat Water.
-
Evaporator could be shell and tube or plate type.
Model |
Act. Cap. (Tons) |
Comp. Input (Kw) |
Evaporator (GPM) |
Weight (Kg) |
Dimensions |
||
LENGTH |
WIDTH |
HEIGHT |
|||||
SPLCH-10-1 |
8.9 |
9.0 |
21 |
1700 |
2500 |
2170 |
2000 |
SPLCH-15-1 |
11.7 |
12.2 |
28 |
1750 |
2500 |
2170 |
2000 |
SPLCH-15-2 |
12.4 |
13.7 |
30 |
1900 |
2500 |
2170 |
2000 |
SPLCH-20-1 |
14.3 |
14.0 |
34 |
1950 |
2500 |
2170 |
2000 |
SPLCH-20-2 |
17.0 |
18.7 |
41 |
2150 |
2500 |
2170 |
2000 |
SPLCH-25-1 |
18.0 |
17.8 |
43 |
2100 |
3000 |
2170 |
2000 |
SPLCH-30-1 |
21.1 |
21.7 |
51 |
2300 |
3000 |
2170 |
2000 |
SPLCH-30-2 |
23.0 |
24.8 |
55 |
2450 |
3000 |
2170 |
2000 |
SPLCH-40-1 |
29.7 |
33.8 |
71 |
2500 |
3500 |
2170 |
2000 |
SPLCH-40-2 |
28.2 |
28.5 |
68 |
2650 |
3500 |
2170 |
2000 |
SPLCH-50-1 |
36.6 |
39.7 |
88 |
3300 |
4780 |
2170 |
2000 |
SPLCH-50-2 |
35.2 |
36.6 |
85 |
3400 |
4780 |
2170 |
2000 |
SPLCH-60-1 |
43.8 |
47.6 |
105 |
3750 |
5780 |
2170 |
2000 |
SPLCH-60-2 |
41.5 |
44.0 |
100 |
3900 |
5780 |
2170 |
2000 |
SPLCH-80-2 |
60.6 |
66.3 |
146 |
4550 |
6780 |
2170 |
2000 |
SPLCH-100-2 |
72.9 |
79.8 |
175 |
4800 |
6780 |
2170 |
2000 |
Note: All dimensions are in mm.
