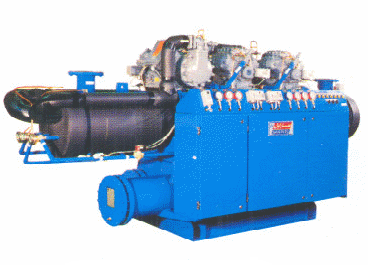

RECIPROCATING CHILLERS
Water-Cooled & Air-Cooled
Three Compressor SLCH-30 to SLCH-240 Models.
|
Model |
Act. Cap. (Tons) |
Comp. Input (Kw) |
Weight (Kg) |
Dimensions |
||
|
LENGTH |
WIDTH |
HEIGHT |
||||
|
SLCH-60-3W |
47.4 |
39.0 |
2370 |
3600 |
1250 |
1610 |
|
SLCH-75-3W |
59.4 |
48.1 |
2450 |
3600 |
1250 |
1660 |
|
SLCH-90-3W |
70.2 |
57.9 |
2550 |
3600 |
1250 |
1660 |
|
SLCH-105-3W |
85 |
73.8 |
2600 |
3600 |
1250 |
1690 |
|
SLCH-120-3W |
102.1 |
87.5 |
2850 |
3900 |
1250 |
1720 |
|
SLCH-150-3W |
123.9 |
99.3 |
3250 |
4150 |
1350 |
1850 |
|
SLCH-180-3W |
147.6 |
123 |
3610 |
4150 |
1350 |
1850 |
|
SLCH-210-3W |
166.5 |
128.6 |
4360 |
4500 |
1520 |
2080 |
|
SLCH-240-3W |
193.5 |
153.2 |
4850 |
4700 |
1520 |
2080 |
|
SLCH-60-3A |
41.1 |
45.1 |
1700 |
3600 |
1260 |
1240 |
|
SLCH-75-3A |
51.0 |
56.7 |
1780 |
3600 |
1260 |
1290 |
|
SLCH-90-3A |
60.3 |
68.1 |
1870 |
3600 |
1260 |
1290 |
|
SLCH-105-3A |
73.3 |
87.1 |
1900 |
3600 |
1260 |
1290 |
|
SLCH-120-3A |
87.5 |
103.5 |
2300 |
3900 |
1260 |
1340 |
|
SLCH-150 -3A |
109.8 |
117.6 |
2570 |
4150 |
1350 |
1450 |
|
SLCH-180-3A |
126.3 |
145.2 |
2900 |
4150 |
1540 |
1450 |
|
SLCH-210-3A |
141.1 |
148.5 |
3420 |
4500 |
1590 |
1710 |
|
SLCH-240-3A |
167.1 |
178 |
3710 |
4700 |
1590 |
1710 |
Note: All dimensions are in mm.
