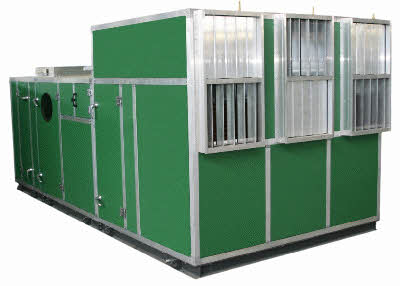

CENTRAL STATION MULTI-ZONE UNITS
Capacity: 2000 to 85000 CFM
Available in 12 sizes to meet a wide range of cooling & heating &ventilation requirements. Triple-Deck Multizone is available to provide accurate interior zone temperature control.
-
Standard frame is constructed of aluminum channels with aluminum die cast corners (up to 4000 model).
-
Frame with constructed with galvanized sheet metal connected with welding and bolts is available as request.
-
Standard fans are designed with forward curved blades, (backward curved and airfoils are also available).
-
Static pressure up to 8 in.w.g. All fan shafts are made of carbon steel With chilled water, hot water, DX, and steam coils as required.
-
Standard coils are designed with 3/8”, 5/8" with plate fin And 3/4",1/2”,1” with spiral fins.
- Blygold coils as options
-
Spiral and plate fin materials include aluminum, copper, brass, carbon steel and stainless steel.
-
Air washer, fog nozzle, sprayed coil, steam humidifier and spray nozzle are also available as humidification options.
-
Standard washable filters are installed in mixing box with 20% dust spot efficiency.
-
Drain pan made of gal or steel sheet metal. High efficiency filters is also available as request.
-
Flow control dampers constructed of aluminum opposed blade with class III tightness based on AMCA standards.
-
Based chassis is constructed with heavy gage carbon sheet channels.
Model |
Fan (CFM) |
Act. Cap.
TC(MBH) |
Weight (Kg) |
Dimensions |
||
LENGTH |
WIDTH |
HEIGHT |
||||
MLZ-250 |
2500 |
50 |
440 |
2720 |
1100 |
1380 |
MLZ-350 |
3500 |
80 |
540 |
2950 |
1300 |
1500 |
MLZ-500 |
5000 |
120 |
600 |
3140 |
1420 |
1600 |
MLZ-700 |
7000 |
180 |
720 |
3270 |
1580 |
1960 |
MLZ-1000 |
10000 |
290 |
940 |
3520 |
1700 |
2000 |
MLZ-1300 |
13000 |
370 |
1060 |
3620 |
1900 |
2350 |
MLZ-1600 |
16000 |
470 |
1200 |
3810 |
2000 |
2400 |
MLZ-2000 |
20000 |
620 |
1590 |
4150 |
2100 |
2650 |
MLZ-2500 |
25000 |
650 |
1960 |
4150 |
2200 |
2750 |
MLZ-3000 |
30000 |
820 |
2290 |
4010 |
2200 |
2800 |
MLZ-3500 |
35500 |
980 |
2550 |
4110 |
2400 |
2950 |
MLZ-4000 |
39500 |
1150 |
2950 |
4250 |
2500 |
3000 |
Note: All dimensions are in mm.
