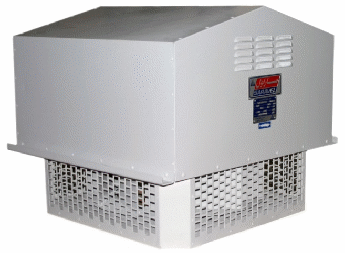

ROOF POWER VENTILATOR
350-5300 CFM
-
For use in exhausting air from buildings
-
Galvanized steel construction
-
direct driven fan
-
1 or 3 PH motors for all models (optional)
-
Self acting or motor operated damper (optional)
-
Model
Cap.
(CFM)
Weight
(Kg)
Dimensions
LENGTH
WIDTH
HEIGHT
SRP-98
240-500
40
550
460
510
SRP-108
330-620
40
570
480
520
SRP-122
340-800
40
590
500
530
SRP-135
540-1100
50
610
520
540
SRP-150
630-1600
50
660
570
550
SRP-165
990-2000
60
710
620
560
SRP-182
880-2800
80
760
670
670
SRP-200
1270-3900
90
810
720
680
SRP-222
1650-5500
110
860
770
730
SRP-245
2100-4600
120
910
820
750
Note: All dimensions are in mm.
